I2B CONCEPT
Industrial Automation
РОБОТИЗИРАНИ РЕШЕНИЯ ЗА ОБСЛУЖВАНЕ НА МАШИНИ

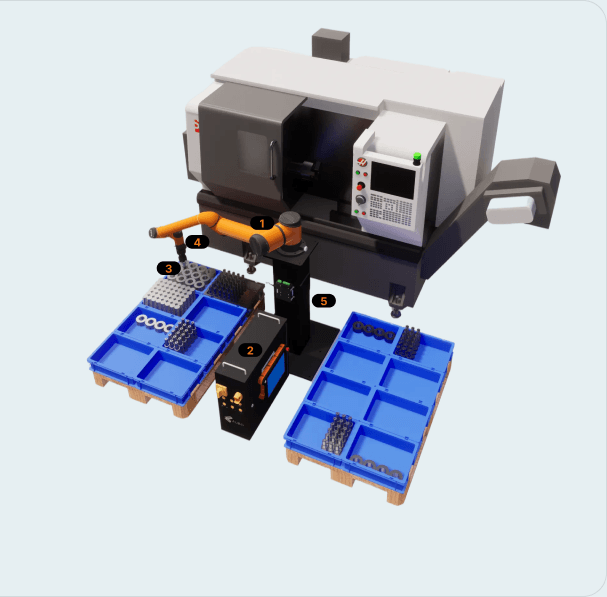

ROBOT TENDING CONFIG #T203
СТАРТОВА ЦЕНА: € 43 825
Integrated high-tech robotic cell for automated machine tending. Designed for maximum precision, safety and easy integration into your industrial processes. Equipped with a collaborative robot and advanced vision system.
ПЪЛНА ОКОМПЛЕКТОВКА
Техническа Спецификация на Клетката
1
TENDING ROBOT
AUBO i10, 6AXIS, WORK RADIUS 1350 MM, PAYLOAD 10KG
2
CONTROL SYSTEM
AUBO 6 AXIS CONTROL BOX, AUBO TEACH PENDANT
3
GRIPPER
ROBOTIQ HAND-E, GRIP PAYLOAD 5KG, GRIP FORCE 2 TO 13 KG
4
VISION SYSTEM
RobotiQ WRIST CAMERA, FOCUS RANGE 70MM TO ∞
5
ROBOT BASE
HEIGHT 900 MM
6
REQUIRED AREA
COMPACT FOOTPRINT WITH DIMENSIONS 2.5 x 3.5 METERS FOR OPTIMAL WORKSPACE ORGANIZATION
